Limiting distance

I need help limiting piston stroke between 0-40mm. File is attached. I tried to much from the help menu but I could not get it properly.

Thank you very much

Superman · 发表于 2022-7-3 11:47:46

What is the version of this 3D file? It can't be opened

Ertan2 · 发表于 2022-7-3 17:37:59

20.4.1.0 version. The file contains just a Festo ADN type pneumatic piston. step version is attached.

Superman · 发表于 2022-7-3 18:42:44

Ertan2 发表于 2022-7-3 17:37
20.4.1.0 version. The file contains just a Festo ADN type pneumatic piston. step version is attached ...

The software version is too high. I'm using version 20.1

Ertan2 · 发表于 2022-7-4 14:15:28

Ertan2 发表于 2022-7-3 17:37
20.4.1.0 version. The file contains just a Festo ADN type pneumatic piston. step version is attached ...

There is a step file attached to this message.

倪1833 · 发表于 2022-7-4 15:46:06

Is this what you need?
See attached file.

Ertan2 · 发表于 2022-7-4 21:54:02

No it is not. Piston rod does not move between 0-40mm. I just want to limit the piston rod movement between 0-40mm when I want to position it.

倪1833 · 发表于 2022-7-5 10:43:18

Ertan2 发表于 2022-7-4 21:54
No it is not. Piston rod does not move between 0-40mm. I just want to limit the piston rod movement ...

When you do the animation, double click the variable. You'll see the movement.

倪1833 · 发表于 2022-7-5 10:43:59

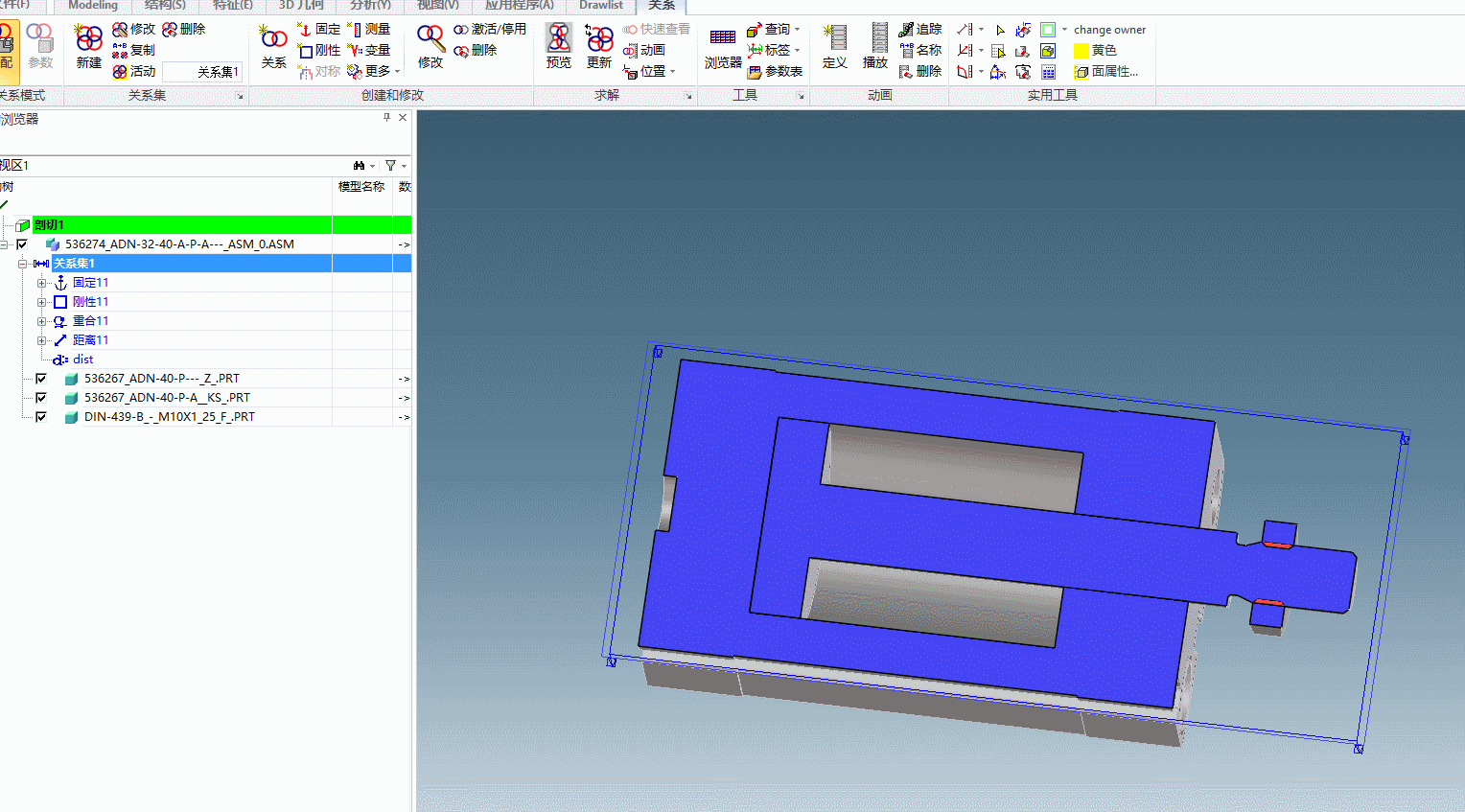

gif demo is attached.

Ertan2 · 发表于 2022-7-5 13:24:47

Very nice thank you very much. But is it possible to move piston rod between 0-40mm by position command ?

Sample video is below.
https://www.youtube.com/watch?v=QJ60SHLgNyI
